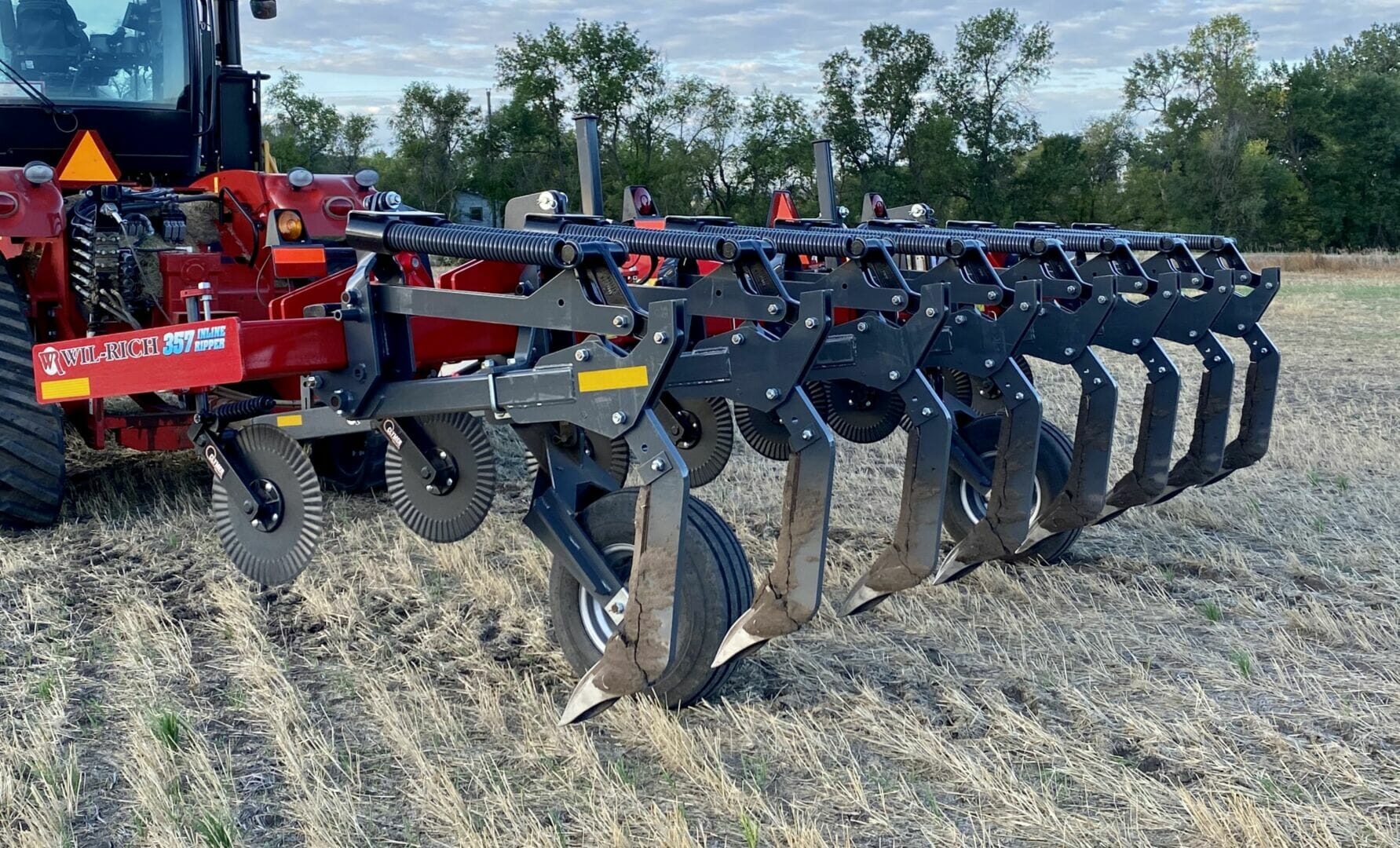

357 Inline Ripper
The Wil-Rich 357 Inline Ripper is ideal for heavy residue conditions, featuring a strong, rugged design to penetrate even the hardest ground. It is available with rigid or spring reset options, plus multiple shank options, such as parabolic, minimal disturbance, and low disturbance shanks.
![357-Inline-Ripper](https://www.wil-rich.com/wp-content/uploads/2023/07/357-Inline-Ripper.jpg)
![357 Inline Ripper Shank Options](https://www.wil-rich.com/wp-content/uploads/2024/04/357-Inline-Ripper-Shank-Options.jpg)
SHANK OPTIONS
Three styles of shanks are available. Choose from 1.25-in (3.2 cm) wide parabolic shanks, 1.25-in (3.2 cm) wide low disturbance shanks, or .75-in (1.9 cm) wide minimal disturbance shanks.
![357 Inline Ripper Spring Reset Trip Assembly](https://www.wil-rich.com/wp-content/uploads/2024/04/357-Inline-Ripper-Spring-Reset-Trip-Assembly.jpg)
Spring Reset Trip Assembly
A massive 4,250 lb (1,928 kg) twin reset trip assembly keeps shanks in the ground.
![357 Inline Ripper Gauge Wheels](https://www.wil-rich.com/wp-content/uploads/2024/04/357-Inline-Ripper-gauge-wheels.jpg)
Adjustable Gauge Wheels
The adjustable gauge wheels have eight settings to ensure uniform working depth in all soil types and conditions.
![357 Inline Ripper Hitch Options](https://www.wil-rich.com/wp-content/uploads/2024/04/357-Inline-Ripper-Hitch-Options.jpg)

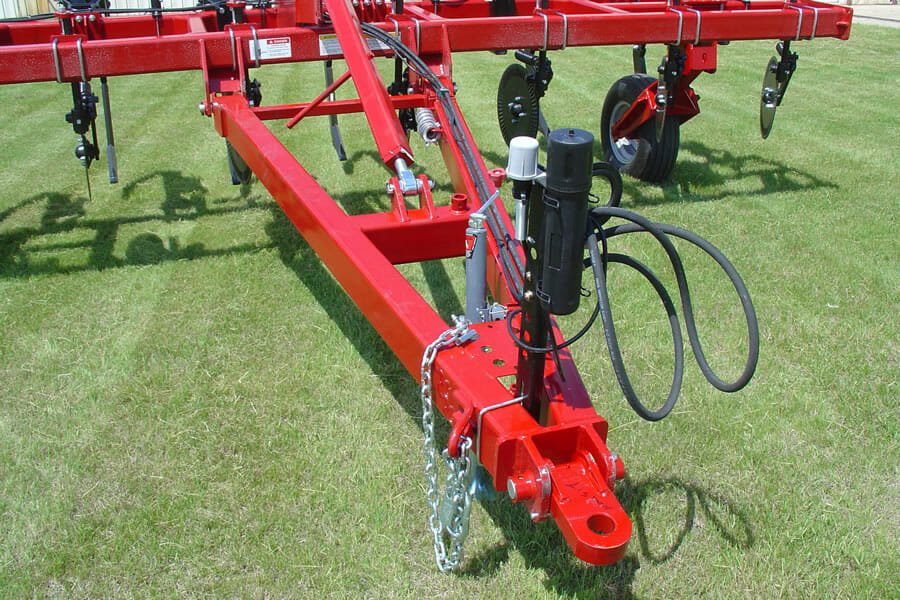

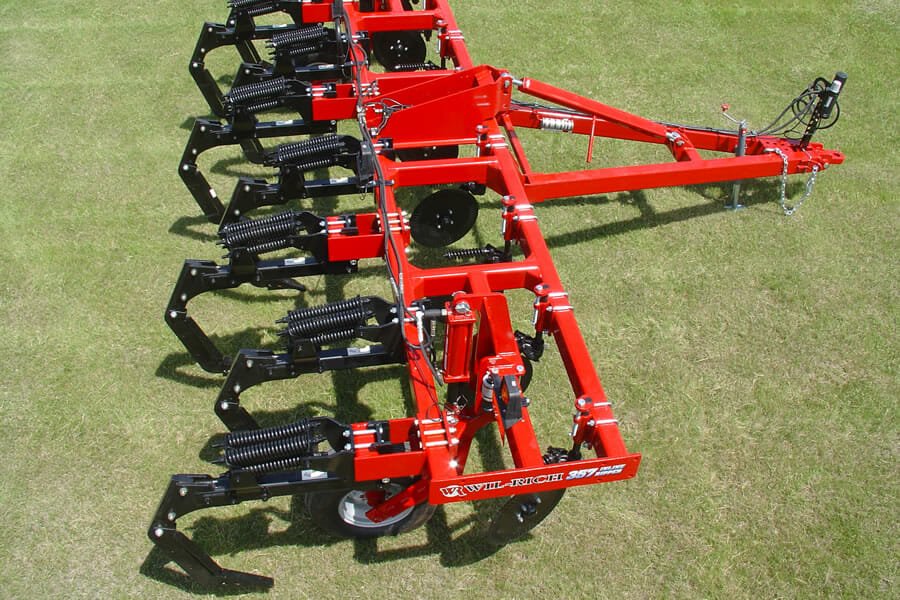

Hitch Options
The Inline Ripper can be equipped with a pull type hitch, including hydraulic lift wheels. A three-point rigid mount is also available.
![357 Inline Ripper Point Options](https://www.wil-rich.com/wp-content/uploads/2024/04/357-Inline-Ripper-ripper-points.jpg)
Ripper points
Depending on the shanks used, multiple ripper options are available, ranging from 3-8 in (7.6-20.3 cm).
![357 Inline Ripper Box Frame](https://www.wil-rich.com/wp-content/uploads/2024/04/357-Inline-Ripper-Box-frame.jpg)
Box Frame
A box frame design provides the 357 Inline Ripper with superior strength.
![357 Inline Ripper Optional Coulters](https://www.wil-rich.com/wp-content/uploads/2024/04/357-Inline-Ripper-Optional-coulters.jpg)
Optional Coulters
The Inline Ripper is available with 20 in (51 cm) spring-loaded coulters to easily slice through residue.
Features
Main Frame
- 4 x 6 x 0.375 in (10.1 x 15.2 m x 1 cm) tubular frame
Wheels
- Walking tandem wheels
Gauge Wheels
- Quick adjust lock pin design with 20.5 x 10 10-ply tires
Safety Equipment
- Transport warning lights
Shanks
- Available with 4, 5, 6, 7, 8 and 12 shanks
- Spacing: 30 in (76 cm)
- 4,250 lb (1,928 kg) twin spring reset shank holder
- Optional 12 in (30.5 cm) shank staggering bracket
Shank Working Depth
- Parabolic :16 in (41 cm) maximum
- Low disturbance: 16 in (41 cm) maximum
- Minimal disturbance: 16 in (41 cm) maximum
- Trip height: 16 in (41 cm)
- Coulters: 7 in (17.8 cm) maximum
Hitch
- 3-Point Hitch, 12-Shank Pull Type unit utilizes a Cat. IV tongue for 2 in (5 cm) diameter pins
Specifications

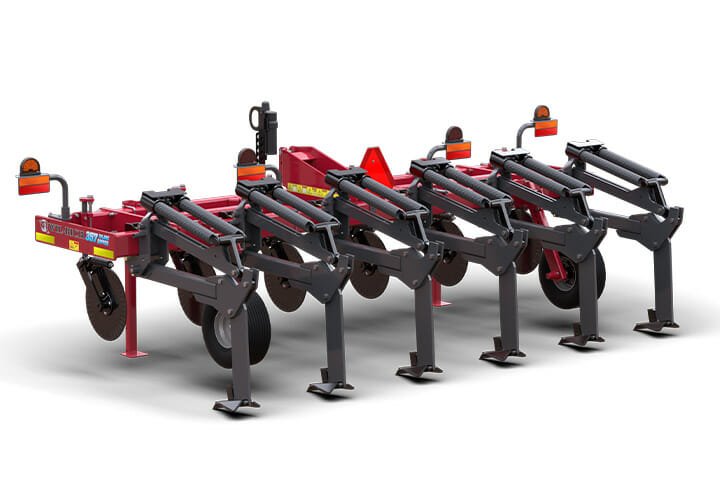

3-Point Mounted Rigid
Model Number | Shank Spacing, | Working Width | Shanks Needed | Transport Width | Transport Height | Approx. Weight lbs. | Horsepower Requirement |
---|---|---|---|---|---|---|---|
3-5 3-Pt. 30 | 30 (76) | 12.5 (3.8) | 5 | 10.8 (3.3) | – | 1,222 (554.2) | 175-250 |
5 3-Pt. 30 | 30 (76) | 12.5 (3.8) | 5 | 10.8 (3.3) | – | 1,190 (539.8) | 175-250 |
5-7 3-Pt. 30 | 30 (76) | 17.5 (5.3) | 7 | 16.2 (4.9) | – | 1,875 (850.5) | 245-350 |
4 3-Pt. 30 | 30 (76) | 10.0′ (3) | 4 | 10.8 (3.3) | – | 1,190 (539.8) | 140-200 |
4-6 3-Pt. 30 | 30 (76) | 15 (4.6) | 6 | 14.3 (4.4) | – | 1,529 (693.5) | 210-300 |
8 3-Pt. 30 | 30 (76) | 20 (6.1) | 8 | 20.2 (6.1) | – | 1,840 (834.6) | 280-400 |

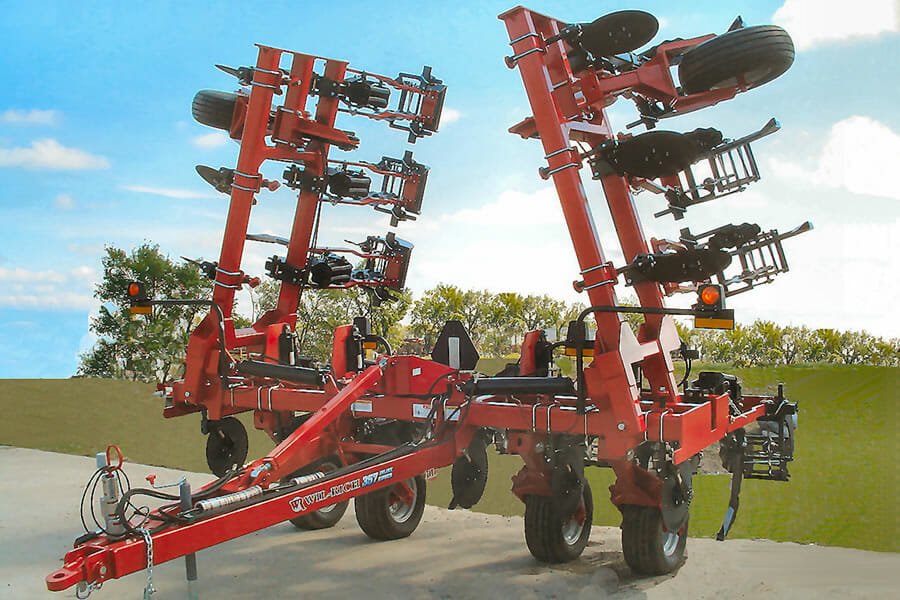

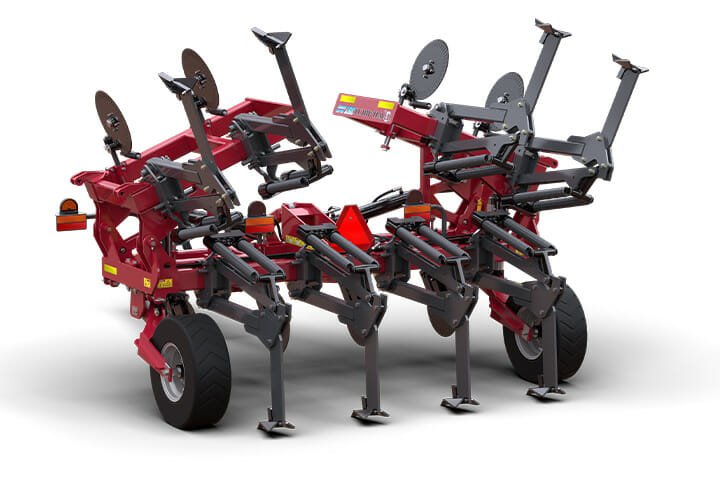

Folding Models
Model Number | Shank Spacing | Working Width | Shanks | Transport Width | Transport Height | Approx. Weight lbs. | Horsepower Requirement |
---|---|---|---|---|---|---|---|
8 3-Pt. 30 | 30 (76) | 20 (6.1) | 8 | 12 (3.7) | 11 (3.4) | 2,607 (1,182.5) | 280-400 |
Folding Over Models
Model Number | Shank Spacing | Working Width | Shanks Needed | Transport Width | Transport Height | Approx. Weight lbs. | Horsepower Requirement |
---|---|---|---|---|---|---|---|
12 Pull 30 | 30 (76) | 30 (9.1) | 12 | 16.4 (4.6) | 15 (4.6) | 6,909 (3,133.9) | 420-600 |
Note: Approx weight: base weight (less shanks)
