Глубокорыхлитель с двойными дисками SoilPro 513
The SoilPro 513 Disc Ripper from Wil-Rich is designed to work in a variety of soil conditions. The SoilPro is a versatile tool designed to break up compaction layers while thoroughly mixing residue in a variety of soil conditions with ease. It leaves the field ready to retain moisture, break down residue and be easily prepped for planting in the next growing season.
The SoilPro 513 is available in cutting widths from 12.5 to 26 ft (3.8 – 7.9 m). The SoilPro 513 has industry-leading, large-diameter 28 in (71 cm) disc blades on two-rank individual C-spring disc blade mounting to bury and mix residue for quick decomposition. The 3,500 lb (1,588 kg) trip pressure ripper shanks penetrate even the toughest soil.
Особенности и технические характеристики
Heavy-duty frame
Heavy-duty 4 x 8 in (10 x 20 cm) frame adds additional weight to keep the tool in the ground and ripping through even the heaviest residue.
Rank spacing
Two ranks of shanks are 55 in (145 cm) apart; the closest shanks are 48 in (122 cm) apart on the rank, promoting excellent crop residue flow.

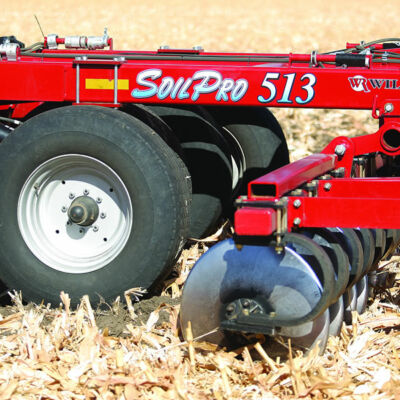

Disc blades
Individually mounted C-spring, 28 in (71 cm) disc blades have an effective spacing of 19 in (48 cm).
Прицепное устройство
Hydraulic jack is standard.
Особенности и технические характеристики
Рама
- 4 x 8 in (10 x 20 cm) tubular frame
- 5 x 7 in (13 x 18 cm) tubular hitch
- Регулируемое по высоте прицепное устройство
- Сцепка, регулируемая по высоте.
Гидравлика – модели с нескладывающейся рамой
- Two main lift cylinders 4.5 x 12 in (11 x 30 cm)
- Two disc lift cylinders 4 x 8 in (10 x 20 cm)
Гидравлика – модели со складывающейся рамой
- Two main lift cylinders 5 x 12 in (13 x 30 cm)
- Two wing lift cylinders 4.5 x 12 in (11 x 30 cm)
- Two main disc lift cylinders 4 x 8 in (10 x 20 cm)
- Two wing disc lift cylinders 3.75 x 8 in (10 x 20 cm)
- Four fold cylinders 4 x 36 in (10 x 91 cm)
Прицепное устройство
- Указатель рабочей глубины.
- Регулируемое по высоте прицепное устройство
- Fabricated Steel Cat. V tongue hitch for 2.75 in (7 cm) diameter pin

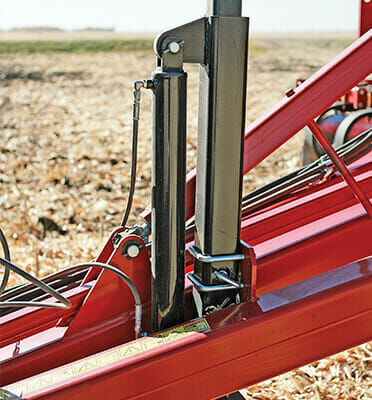

Домкрат
- Гидравлический домкрат регулировки положения прицепного устройства.
Колеса/шины
- Крепление к ступице 8 болтами, шины 385/65R 22.50 (новые или б/у).
Колеса и шины
- Тандемные колеса на центральной и боковых секциях рамы.

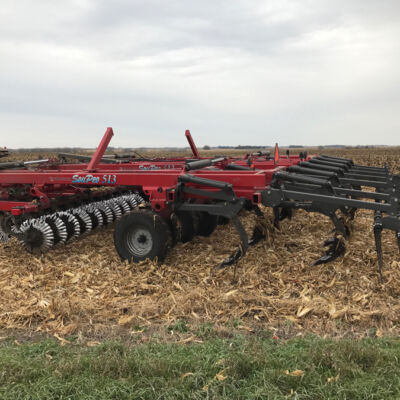

Параболические стойки
- 1.25 in (3 cm) high-strength, abrasion-resistant steel with chromium carbide shin guards
- Пружинный механизм автовозврата с двумя пружинами растяжения.
- Two trip extension springs
- Trip height of 18 in (46 cm)
- Working depth of 14 in (36 cm) maximum
- 3,500 lbs (1,588 kg) max. trip pressure
- Shank spacing 24 or 30 in (61 or 76 cm)
- Transport height clearance 12 in (30 cm)

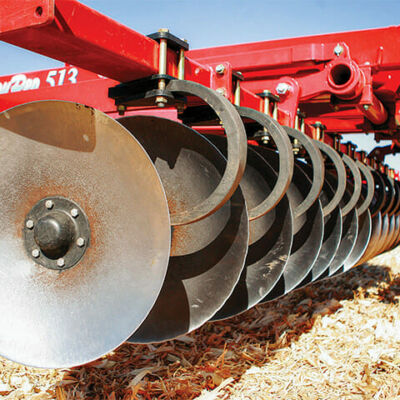

Диски
- Smooth blades 28 x 5/16 in (71 x .8 cm)
- 19 in (48 cm) blade spacing, 9.5 in width (24 cm) effective cut
- Гидравлическая регулировка рабочей глубины.
- Индивидуальное крепление дисковых ножей.
- С-образные подпружиненные стойки.
- 18-degree cutting angle
Рабочая глубина
- Shanks 0 to 14 in (0 – 36 cm)
- Discs 0 to 8 in (0 – 20 cm)
Рабочая скорость
- 6 – 10 км/ч.
Оборудование для обеспечения безопасности
- Страховочная цепь.
- Комплект транспортного освещения.
- Механические транспортные фиксаторы.
- Медленно движущихся знак транспортного средства

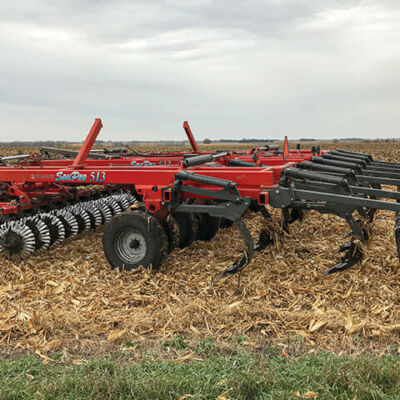

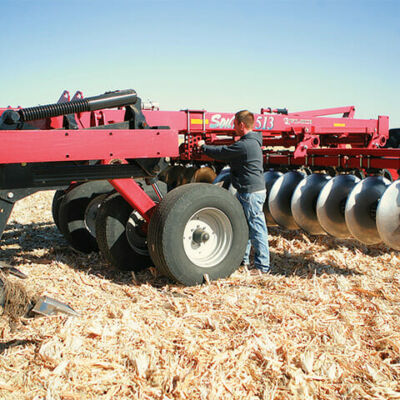

Галерея изображений
Технические характеристики
Rigid Models
Модель | Number of shanks | Number of blades | Working width, ft (m) | Shank spacing, in (cm) | Transport width, ft (m) | Transport height, ft (m) | Transport length, ft (m) | Weight, lbs (kg) | Horsepower requirement |
|---|---|---|---|---|---|---|---|---|---|
| 5-30 SP 513 | 5 | 18 | 12.5 (3.8) | 30 (76) | 16.2 (4.9) | 7 (2.1) | 33.4 (10.2) | 17,180 (7,793) | 300-400 |
| 7-24 SP 513 | 7 | 18 | 14 (4.3) | 24 (60) | 16.2 (4.9) | 7 (2.1) | 33.4 (10.2) | 18,061 (8,192) | 300-450 |
| 9-24 SP 513 | 9 | 24 | 18 (5.5) | 24(60) | 21.25 (6.5) | 7 (2.1) | 33.4 (10.2) | 21,143 (9,590) | 350-450 |
Со складывающейся рамой
Модель | Number of shanks | Number of blades | Working width, ft (m) | Shank spacing, in (cm) | Transport width, ft (m) | Transport height, ft (m) | Transport length, ft (m) | Weight, lbs (kg) | Horsepower requirement |
|---|---|---|---|---|---|---|---|---|---|
| 9-24 SP 513 | 9 | 24 | 18 (5.5) | 24 (60) | 15.75 (4.8) | 11.8 (3.6) | 33.4 (10.2) | 22,567 (10,236) | 350-450 |
| 11-24 SP 513 | 11 | 30 | 22 (6.7) | 24 (60) | 19.25 (5.9) | 13.7 (4.2) | 33.4 (10.2) | 32,280 (14,642) | 450-550 |
| 13-24 SP 513 | 13 | 34 | 26 (7.9) | 24 (60) | 15.75 (4.8) | 19.25 (5.9) | 33.4 (10.2) | 33,688 (15,281) | 500+ |
*Approx weight: base weight + tire group
**Adding harrows to a unit may increase the transport width and/or height of the unit.
